GaiaField-Pro Hyperspectral Imaging Camera

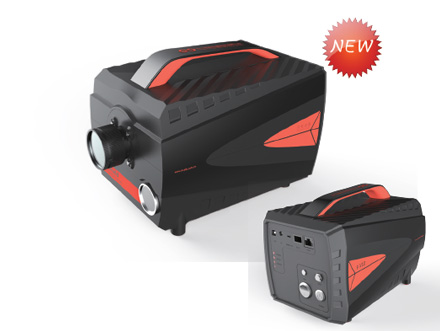

GaiaField-Pro (GFP) camera provide extremely high resolution images by scanning and taking multiple images to construct a hyperspectral datacube.
Catalog Inquiry

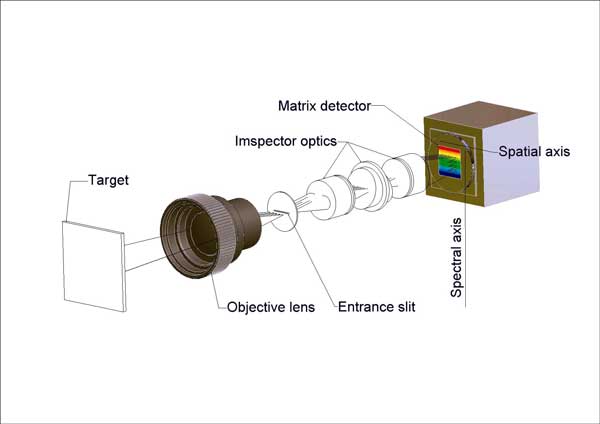

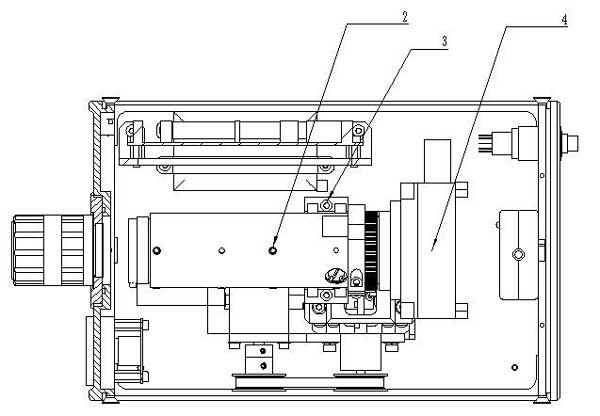

    GaiaField-Pro (GFP) camera provide extremely high resolution images by scanning and taking multiple images to construct a hyperspectral datacube. Hyperspectral imaging devices (GFP) for spatial (slit) scanning obtain slit spectra by projecting a strip of the scene onto a slit and dispersing the slit image with a prism or a grating. In spatial (slit) scanning, each two-dimensional (2-D) sensor output represents a full slit spectrum (x,λ). The NUC integrated into the system to control system operation ,data acquisition, and analyze, so the spatial dimension is collected through the scanning motor movement . The line-scan systems are particularly common in remote sensing, so it is sensible to use mobile platforms. The system can keep working by internal battery about 4 hours and user can use ipad or phone to connect the camera by internal Wifi.

    GaiaField Pro System Function:

    · Auto exposure time;
    · Auto focusing;
    · Auto match scanning speed;
    · Auxiliary camera (user can observe you want );
    · Data analysis (reflectance /radiometric/uniformity/lens/area calibration)
    · Spectra /imaging view and export;
    · Spectral Angle matching
    · NDVI(advance custom)
    · PCA
    · Supervised classification
    · Support lens change
    · Standard type data (support envi/envice/matlab)
    · Support Ipad or phone control

    GaiaField Pro System Parameters

    Table:1

    Instrument model

    GaiaField-Pro-V10

    GaiaField-Pro-V10E

    Spectral Region(nm)

    400-1000

    400-1000

    Spectral resolution(nm)

    (with 30μm slit)

     (with 30μm slit)

    Slit Length(mm)

    9.6

    14.2

    Slit Width(μm)

    30

    30

    Numerical Aperture

    F/2.8

    F/2.4

    Light Transmission

    >50%

    Spectral Bands

    720(2X Binning)

    720(2X Binning)

    Lens

    Model

    HSIA-OLE23

    Focal Distance(mm)

    23

    Work Distance(mm)

    100-∞

    Field Angle (°)

    21.5 (CCD 2/3″)

    CCD Pixels

    1936×1456

    Pixel Size(μm)

    4.54×4.54

    Digital OutPut(bits)

    8 & 12

    Dynamic Range(dB)

    >66

    Exposure Time Range(ms)

    0.0035-1200000

    Lens Connector

    C-Mount

    Power

    DC 16.8V

    Power Consumption(W)

    45

    Storage Temperature(℃)

    -20~+50

    Running Temperature (℃)

    +5~+40

    Table:2

    Instrument model

    GaiaField-Pro-N17E-N3

    GaiaField-Pro-N17E-HR

    Spectral Region(nm)

    900-1700

    900-1700

    Spectral resolution(nm)

    4(with 30μm slit)

    4(with 30μm slit)

    Slit Length(mm)

    14.2

    14.2

    Slit Width(μm)

    30

    30

    Numerical Aperture

    F/2.0

    F/2.0

    Light Transmission

    >50%

    >50%

    Spectral Bands

    100-200

    200-300

    Lens

    Model

    HSIA-OLES30

    HSIA-OLES30

    Focal Distance(mm)

    30

    30

    Work Distance(mm)

    100-∞

    100-∞

    Pixels

    320x256

    640×512

    Pixel Size(μm)

    30mm×30mm

    20umx20um

    Digital OutPut(bits)

    12

    14

    Frame Number(fps)

    100

    100

    Exposure Time Range(ms)

    5us-1s

    1us-40ms in high gain mode

    Gain Mode

    High/Low

    High/Low

    Signal Connector

    Ethernet port/USB

    USB2.0

    Lens Connector

    C-Mount

    C-Mount

    Power

    +12V(-0%/+5%)

    12VDC

    Power Consumption(W)

    36

    60

    Storage Temperature(℃)

    -45~+85

    Operating Temperature (℃)

    -40~+70

    GaiaField Pro System Software:

    · Camera settings;
    · Motor settings;
    · Control scanning motor;
    · Control focusing motor;
    · Data collect;
    · Data calibration/ analysis and view;
    · Saving path settings;
    · Output inf and so on;

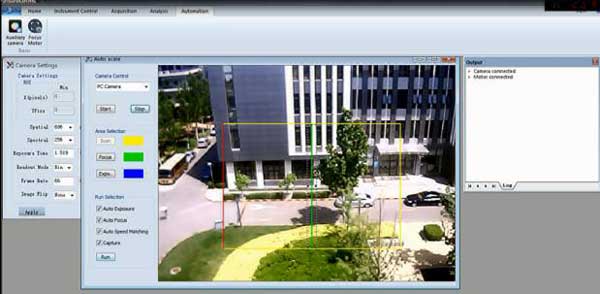

    Fig:Specview

    GaiaField Pro System Apply:

    There are many applications which can take advantage of GFP hyperspectral imaging.

    · Atmosphere: water vapor, cloud properties, aerosols;
    · Ecology: chlorophyll, leaf water, cellulose, pigmemts, lignin;
    · Geology: mineral and soil types;
    · Coastal Waters: chlorophyll,dissolved organic materials, suspended sediments;
    · Snow/Ice: snow cover fraction, grainsize, melting;
    · Biomass Burning: subpixel temperatures, smoke;
    · Commercial: mineral exploration, agriculture and forest production
