Gaiasky-mini Hyperspectral Imaging Camera

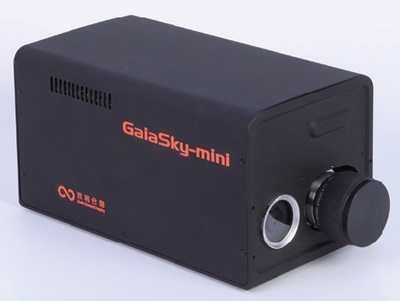

GaiaSky-VIS/NIR camera provide extremely high resolution images by scanning and taking multiple images to construct a hyperspectral datacube.

Catalog Inquiry

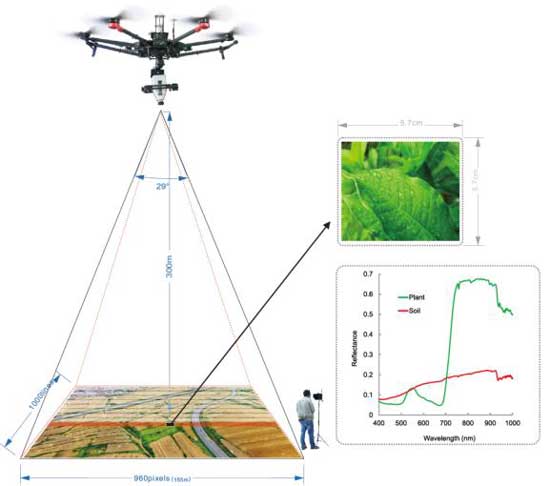

GaiaSky-VIS/NIR camera provide extremely high resolution images by scanning and taking multiple images to construct a hyperspectral datacube. Hyperspectral imaging devices (GaiaSky) for lens scanning obtain slit spectra by projecting a strip of the scene onto a slit and dispersing the slit image with a prism or a grating. In lens scanning, each two-dimensional (2-D) sensor output represents a full slit spectrum (x,λ). The NUC integrated into the system to control system operation ,data acquisition, and analyze , so the spatial dimension is collected through the scanning motor movement.

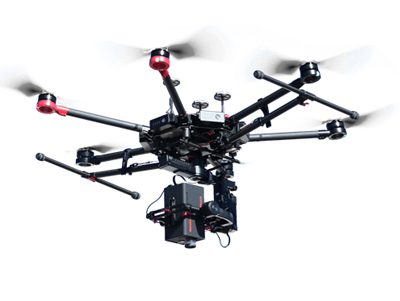

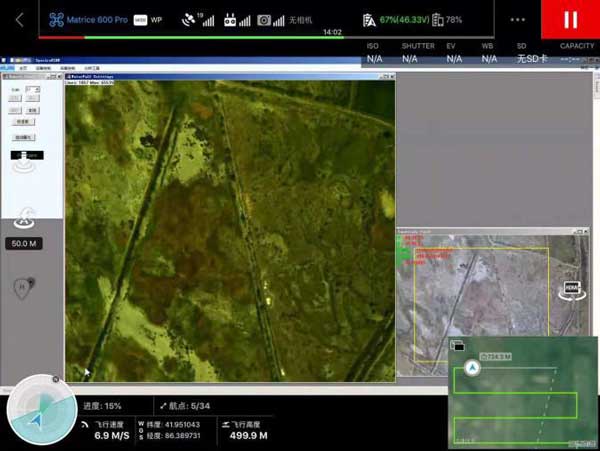

GaiaSky camera connects with DJ UAV, user only need control the UAV by controller fly to the test area and specific height, then the UAV receive the trigger signal from the operator, the system will work and save data to the internal NUC , when finish capture the first point so the UAV can automatically fly to next position which user set before fly until finish the last position collect.

GaiaSkySystem Function:

· Auto exposure time;

· Auto match scanning speed;

· Auxiliary camera (user can observe you want );

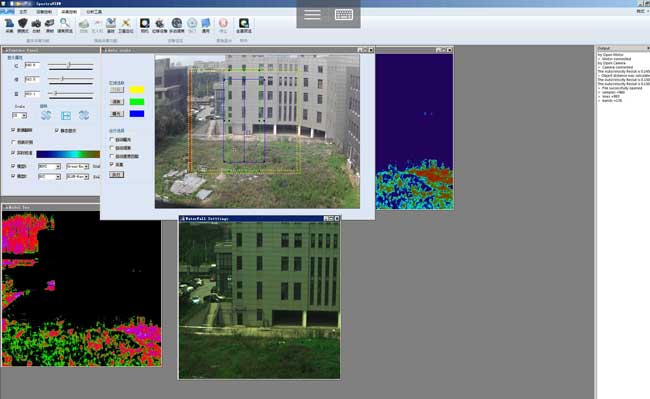

· Data analysis (reflectance /radiometric/uniformity/lens/area /atmospheric/calibration)

· Spectra /imaging view and export;

· Spectral Angle matching;

· NDVI(advance custom);

· PCA;

· Supervised classification;

· Support lens change;

· Standard type data (support envi/envice/matlab);

· Images stitching;

2.2.GaiaSky System Parameters

Instrument model	Gaiasky-mini2-VN		Gaiasky-mini-VN		Gaiasky-mini-VN-W
Spectral Region(nm)	400-1000nm
Spectral resolution	3.5nm
Numerical Aperture	F/2.8
Spectral channel number	0.5nm		0.7nm		0.7nm
Pixels	1936 x 1456 4.54um		1392 x 1040 6.45um			1392 x 1040 6.45um
Pixel pitch
Digital OutPut	14(bit)
Signal Connector	USB 3.0		USB 2.0		USB2.0
Power	12~19V
Power Consumption	45W
Carrying platform	DJI M600 Pro
lens	18.5mm， 23mm
(FOVac，°)	26.7@18.5mm,21.5@23mm		27.3@18.5mm,22.08@23mm		27.3@18.5mm,22.08@23mm
The transverse view	142M@18.5mm, 115M@23mm(Flight altitude 300M)		146M@18.5mm, 117M@23mm(Flight altitude 300M)		146M@18.5mm, 117M@23mm(Flight altitude 300M )
Ingle image resolution	1920X2080(1X), 960X1040(2X)		1392X1400(1X), 696X700(2X)		None
Spectral channel number	1440(1X)，720(2X)，360(4X)，176(8X)		1040(1X)，520(2X)，256(4X)，128(8X)		1040(1X)，520(2X)，256(4X)，128(8X)
Spatial resolution	0.118(@23mm,Height 300m)		0.168(@23mm, ,Height 300m)		0.168(@23mm, ,Height 300m)
Scanning speed (line images/s)	125(360)	160(176channel)	60(360channel)	84(176chan nel)	60(360cha nnel)		84(176channel
Single shotspeed (s)	9@360channel	7@176channel	13@360channel	9@176chan nel	None
Weight	1.5kg				1kg
Memory	240G SSD(512G,1T Optional)

GaiaSky System Apply:

There are many applications which can take advantage of hyperspectral imaging.

· Environmental: water quality monitoring,atmospheric monitoring of the Marine environment

· Agricultural: plant disease feature classification agricultural census

· Military: anti-camouflage

· Geological research: mineral exploration, basic geological survey, soil quality survey

Test Data

旋翼无人机高光谱测试数据
2017-07-05
小型旋翼无人机机载高光谱在目标识别、伪装与反伪装军事领域，地面物体与水体遥测、现代精细农业等生态环境监测等领域有广泛应用
